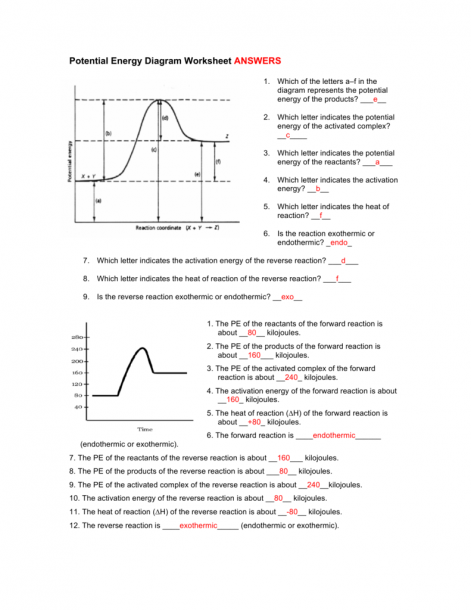

30+ Potential Energy Diagram Worksheet PNG. Reaction rates and potential energy diagrams 1. Some of the worksheets for this concept are potential energy diagram work answers, work 1 2 potential energy diagrams key, ws 4 potential energy diagrams work, name kinetics potential energy diagrams.
Label the axis, pe of reactants = 350 kj/mol, ea = 100 kj/mol, pe of products = 250 kj/mol.
207 chemistry worksheet templates are collected for any of your needs. This worksheet will teach your little scientists the difference between kinetic (movement) and potential (stored) energy. You won't be directly tested on your knowledge of lab equipment, however the ap chemistry exam will often describe and/or diagram experimental setups so you will. (a) in an endothermic reaction, the the activation energy for a reaction is illustrated in the potential energy diagram by the height of the hill between the reactants and the products.
